Install the Logitech camera software and hardware

Before you connect the candidate admissions camera, make sure you have read the Place the admissions equipment topic and have selected a suitable location for the device. Follow this procedure to install the camera drivers on the administration workstation.

In the kit you will find a Logitech HD Webcam C615or C920 camera.

Logitech C615 camera

Logitech C920 camera

Note iconNote

You must download the Logitech camera drivers off the Connect portal Resources Support materials application. See Download Logitech camera driver topic for details on downloading the files.

Temp directory path:

Downloads

Install Logitech C615 camera

  1. Open Windows Explorer and navigate to the Downloads directory.
  2. Double-click the lws280.exe file.

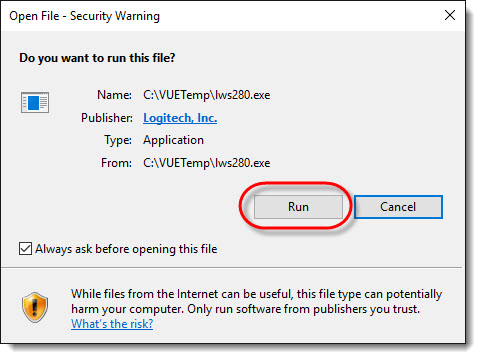

  3. Click Run in the Open File - Security Warning dialog box.

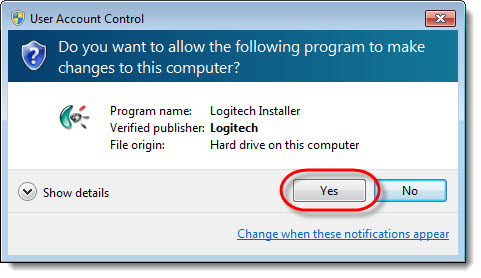

  4. Click Yes in the User Account Control dialog box.

  5. In the Logitech Webcam Software Installation Welcome dialog box, select English from the Language drop down list, and click Next.

  6. Plug the camera into a USB port on the administration workstation and click Next.

  7. Click Next after the Webcam Connected dialog box appears.

  8. Make sure only the Logitech Webcam Drivers are selected. Keep the default Installation Directory and click Next.

  9. The software now runs through the install process.
  10. In the Check Settings dialog box, Webcam should be Logitech HD Webcam C615, and the Microphone should be HD Webcam C615. Click Next.

  11. Click Finish Up. The installation is complete.

Install Logitech C920 camera

  1. Plug the camera into a USB port.
  2. Wait until the message stating the Device is ready appears on your screen.

  3. Open Windows Explorer and navigate to the Downloads directory.
  4. Double-click the LogiCameraSettings_2.12.8.exe file.

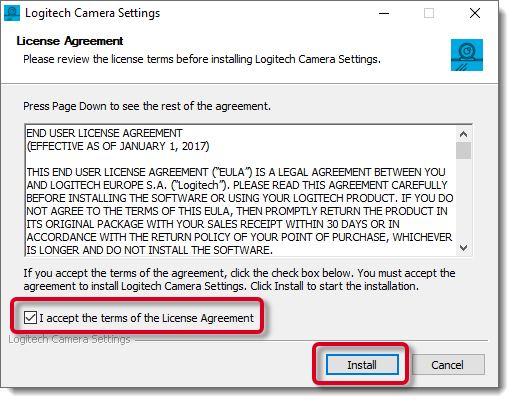

  5. Select the I accept the terms of the License Agreement option in the License Agreement dialog box and click Install.

  6. The installation runs.
  7. When the installation is complete, click Finish in the Completing Logitech Camera Settings Setup dialog box.

Install Logitech C920e camera

  1. Plug the camera into a USB port.
  2. Wait until the message stating the Device is ready appears on your screen.

  3. Open Windows Explorer and navigate to the Downloads directory.
  4. Double-click the LogiTuneInstall.exe file.

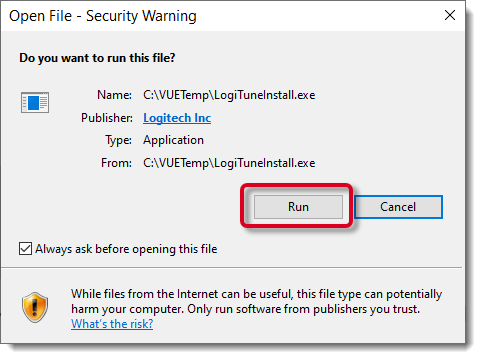

  5. Click Run in the Open File - Security Warning dialog box.

    Run the LogiTuneInstaller dialog box.

  6. Click Install Logi Tune in the Welcome to Logi Tune installer dialog box.

    Install Login Tune from the Welcome to Logi Tune installer dialog box.

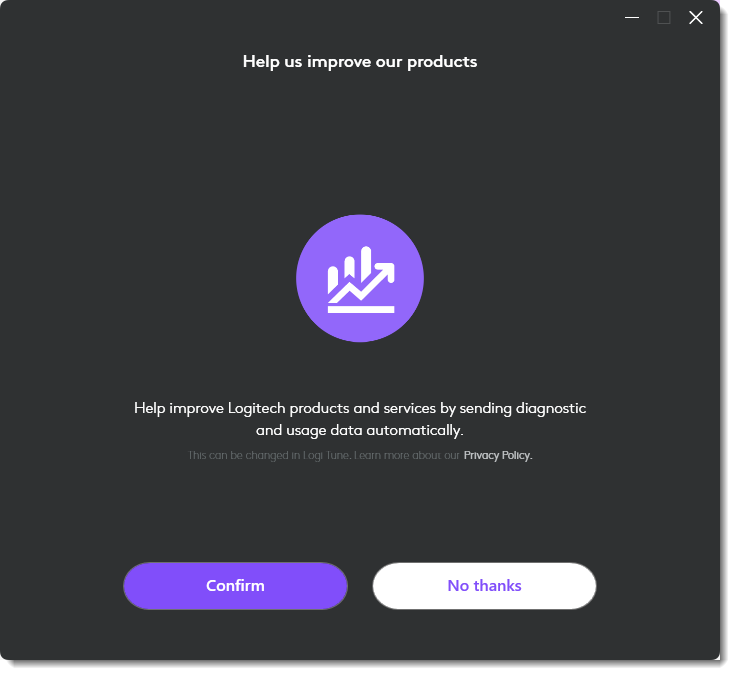

  7. Click Confirm or No thanks in the Help us improve our products dialog box.

    Help us improve our products dialog box.

  8. Click Install in the Windows Security dialog box.

    Confirm installing Logitech software.

  9. The Logitech software drivers are installed. Click the Close button when the Welcome to Logi Tune window opens.

    Close the Welcome to Logi Tune window.



What is next?

Test and align the admissions camera - candidate
