Install the palm vein firmware update

64-bit Windows 10 Firmware update

Before you can use the palm vein device, you must update the palm vein Firmware software.

  1. Make sure you have plugged the Palm Vein device into a USB port on the administration or proctor workstation.
  2. Open Windows Explorer and navigate to the Downloads\Palm_Vein_Win7-10_64bit\64bit-Firmware-V2 directory.
  3. Double-click the FirmwareUpdate.exe file.
  4. Select Run in the Open File - Security Warning dialog box.

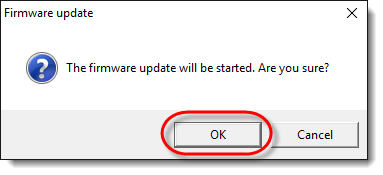

  5. Select OK in the Firmware update dialog box.

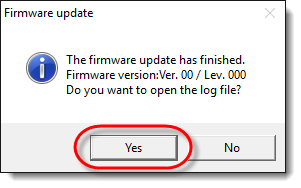

  6. Select Yes in the Firmware update dialog box to view the log file.

  7. Close the log file.

What is next?

Test the palm vein device
