Connect the microphone to the DVR

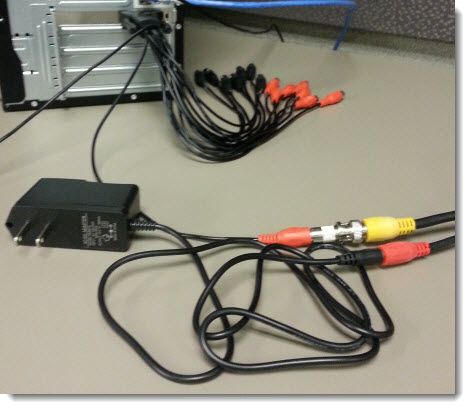

  1. In the admissions area, plug the BNC to RCA adapter into the yellow BNC connector on the Audio cable. Line up the peg with the channel, push, and twist to the right until it locks.

  2. Plug the BNC to RCA adapter on the yellow BNC audio cable into the red RCA EZWatch Dongle Audio 1 connector.

  3. Plug the male end of the microphone power supply into the female end of the red audio cable connector.

  4. Plug the microphone power supply into an available electrical outlet.

Note iconNote

The standard power supply provides power to a single microphone with a two-prong plug. Some sites may receive the following alternative power supplies. One power supply has a 3-prong plug, and the other power supply provides power for up to 4 devices.



What is next?

Test EZWatch
